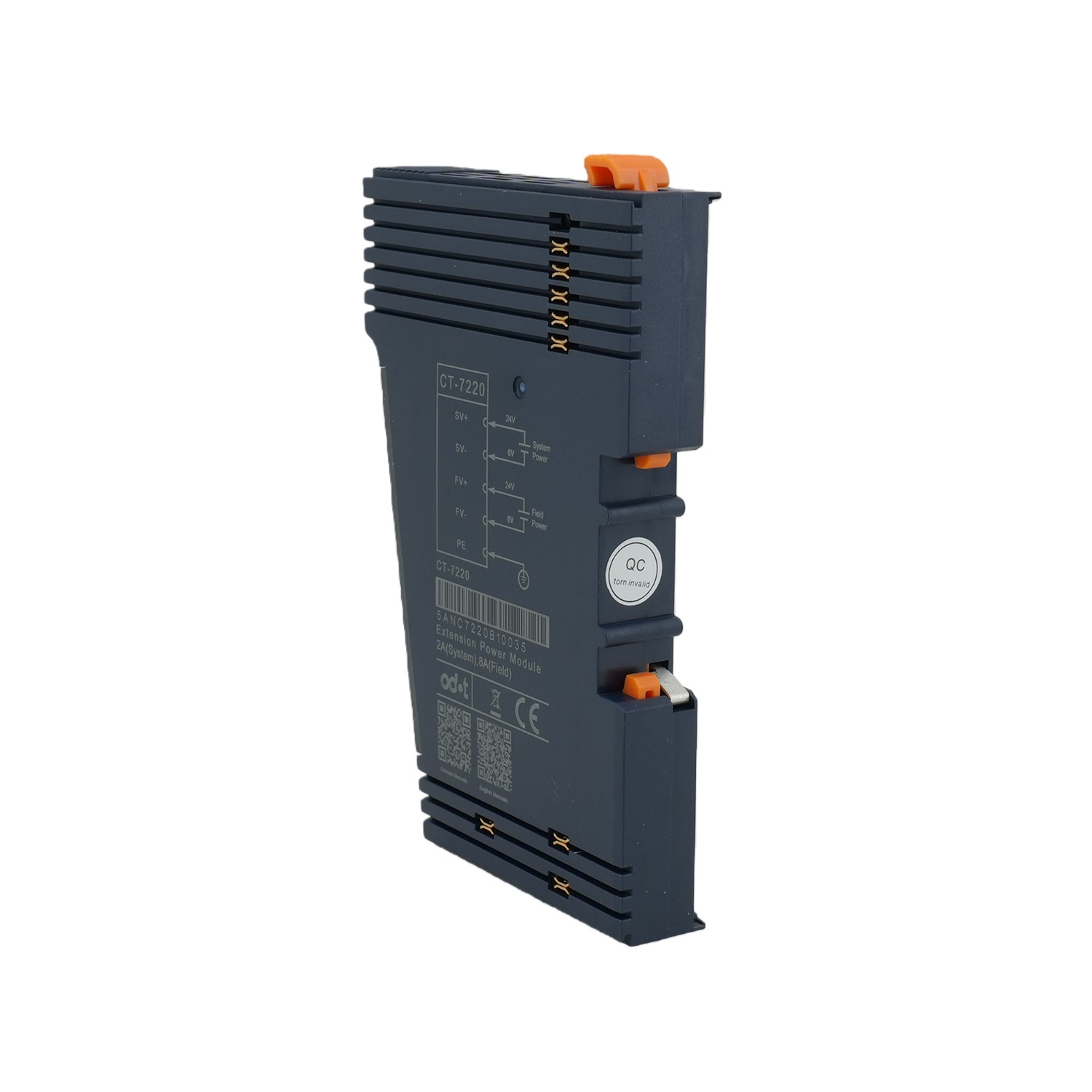

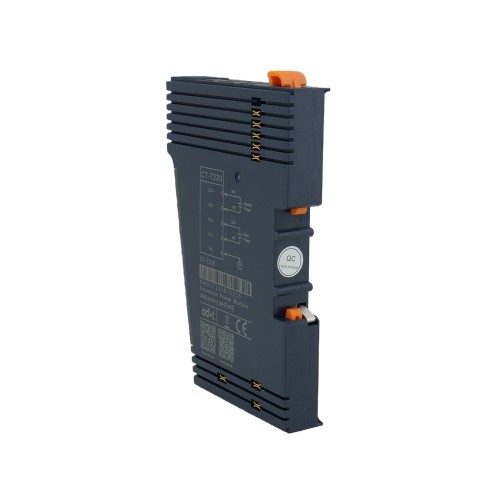

Model No: CT-7220
| Unduh | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| General parameters | |
| System Power | Nominal24Vdc |
| Range | 19.2-28.8Vdc |
| Protection | Overcurrent protection, anti-reverse connection protection |
| Module Internal Power Consumption | 20mA@5VDC |
| Internal Bus Supply Current | Max:2.0A@5VDC |
| Isolation | System Power to Field Power Isolation |
| Field Power | Power Supply: 19.2~28.8V（Nominal:24Vdc） |
| Protection | Anti-reverse connection protection |
| Field Power Supply Current | Max. DC 8A |
| Environment Specification |
|
| Operational Temperature | -35~70℃ |
| Operational Humidity | 5%~95% RH(No Condensation) |
| Protection Class | IP20 |
