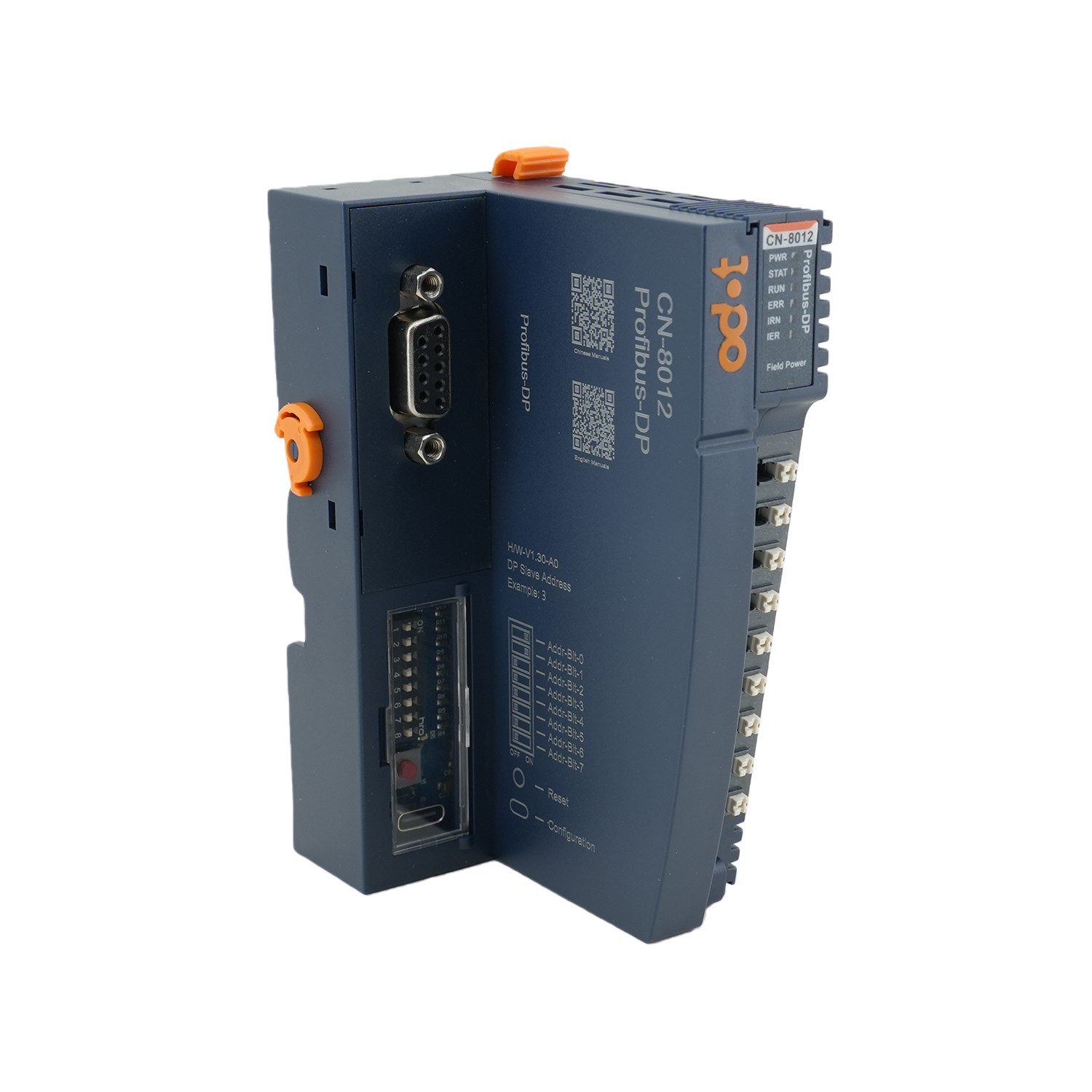

Model No: CN-8012
| Unduh | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Hardware Parameters | |
| System Power |
Nominal:24VDC, Range: 19.2～28.8VDC
Current: Max.2A@24VDC
Protection: Reverse Protection, Overcurrent Protection
|
| Power Consumption | 30mA@24VDC |
| Internal Bus Supply Current | Max.: 2.5A@5VDC |
| Isolation | System Power to Field Power Isolation |
| Power Supply | Nominal:24VDC, Range: 19.2～28.8VDC |
| Field Power Current | Max. DC 8A |
| IO Modules Supported | 32 pcs |
| Wiring | Max.: AWG 18 Min.: AWG 24 |
| Installation | 35mm DIN-Rail |
| Size | 115*51.5*75mm |
| Weight | 130g |
| Environment Specification | |
| Operating Temperature of Vertical Installation | -35℃~70℃ |
| Operating Temperature of Horizontal Installation | -35℃~60℃ |
| Relative Humidity | 5~ 95%RH (No Condensation) |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | 5~ 95%RH (No Condensation) |
| Manufacturing Test Temperature | -40℃~75℃ |
| Ingress Protection Rating | IP20 |
| Modbus-RTU Parameter | |
| Protocol | PROFIBUS DPV0 |
| Baud rate | 9.6k, 19.2k, 45.45 k, 93.75 k, 187.5 k, 500 k,1.5 M, 3 M, 6 M, 12 Mbps |
| Interface Type | DB9 female head |
| Station Type | PROFIBUS Slave |
| Station Address | Dial code switch configuration |
| Topology | Bus Topology |
| Configuration Max. Length | 232 bytes |
| IO Data Max. Length | Input: Max. 244 bytes, Output: Max. 244 bytes,Sum of input and out put: Max. 288 bytes |
