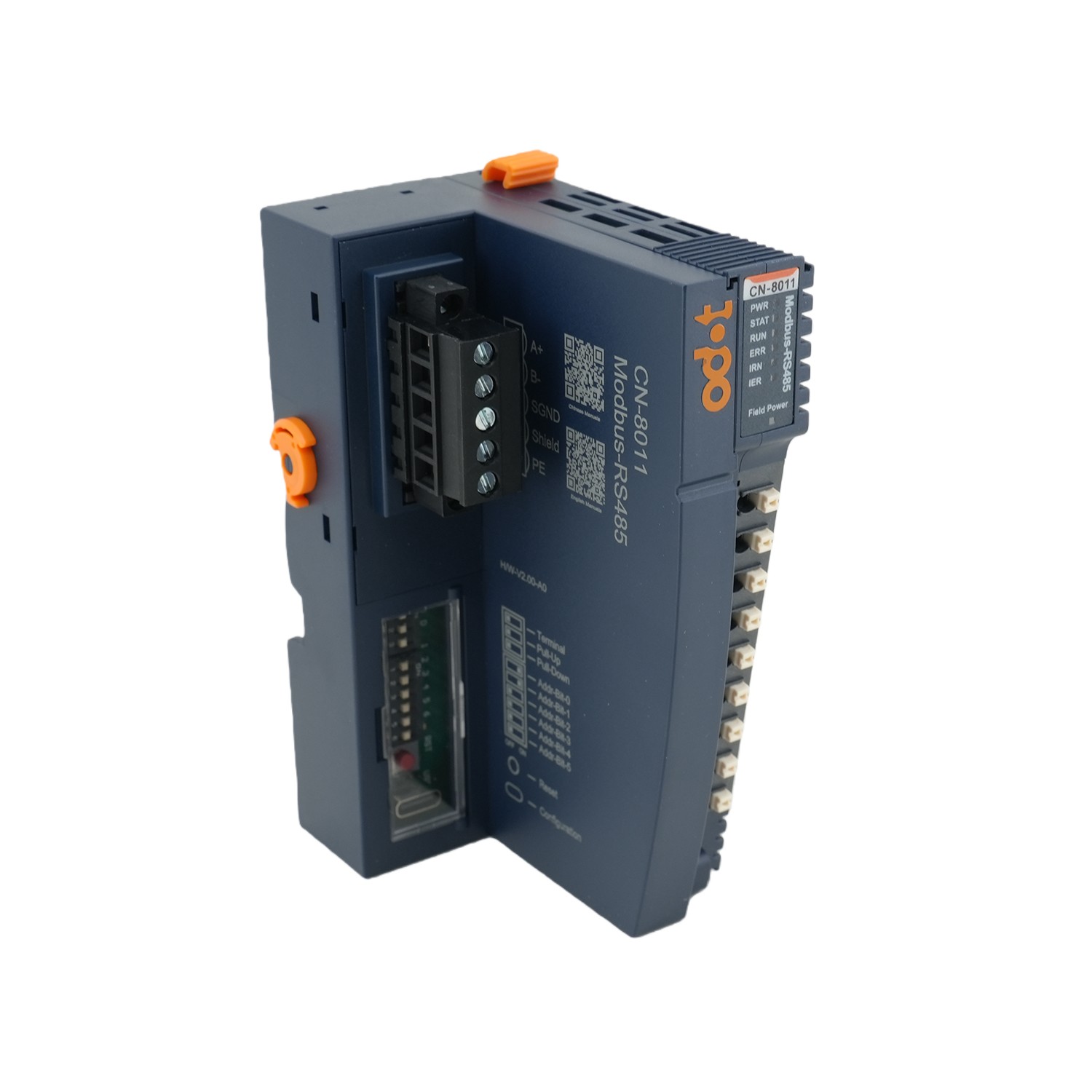

Model No: CN-8011
| Unduh | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Hardware Parameters | |
| System Power |
Nominal:24VDC, Range: 19.2～28.8VDC
Current: Max.2A@24VDC
Protection: Reverse Protection, Overcurrent Protection
|
| Power Consumption |
30mA@24VDC
|
| Internal Bus Supply Current | Max.: 2.5A@5VDC |
| Isolation | System Power to Field Power Isolation |
| Power Supply | Nominal:24VDC, Range: 19.2～28.8VDC |
| Field Power Current | Max. DC 8A |
| IO Modules Supported | 32 pcs |
| Wiring | Max.: AWG 18 Min.: AWG 24 |
| Installation | 35mm DIN-Rail |
| Size | 115*51.5*75mm |
| Weight | 130g |
| Environment Specification | |
| Operating Temperature of Vertical Installation | -35℃~70℃ |
| Operating Temperature of Horizontal Installation | -35℃~60℃ |
| Relative Humidity | 5~ 95%RH (No Condensation) |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | 5~ 95%RH (No Condensation) |
| Manufacturing Test Temperature | -40℃~75℃ |
| Ingress Protection Rating | IP20 |
| Modbus-RTU Parameter | |
| Protocol | Modbus-RTU/ASCII |
| Function Code | 01 / 02 / 03 / 04 / 05 / 06 / 15 / 16 / 23 |
| Baud Rate | 2400~115200bps |
| Station No. | 1~63(Dial-code switch configuration),64~247(Software configuration) |
| Interface | 5 Pin screw terminal |
| Data Bits | 7, 8 |
| Parity Checking | N/A, Even, ODD |
| Stop Bit | 1，2 |
| Max. Bus Length | 1200m（RS485，2400 baud rate） |
| Terminal resistance and offset resistance | DIP switch configuration |
