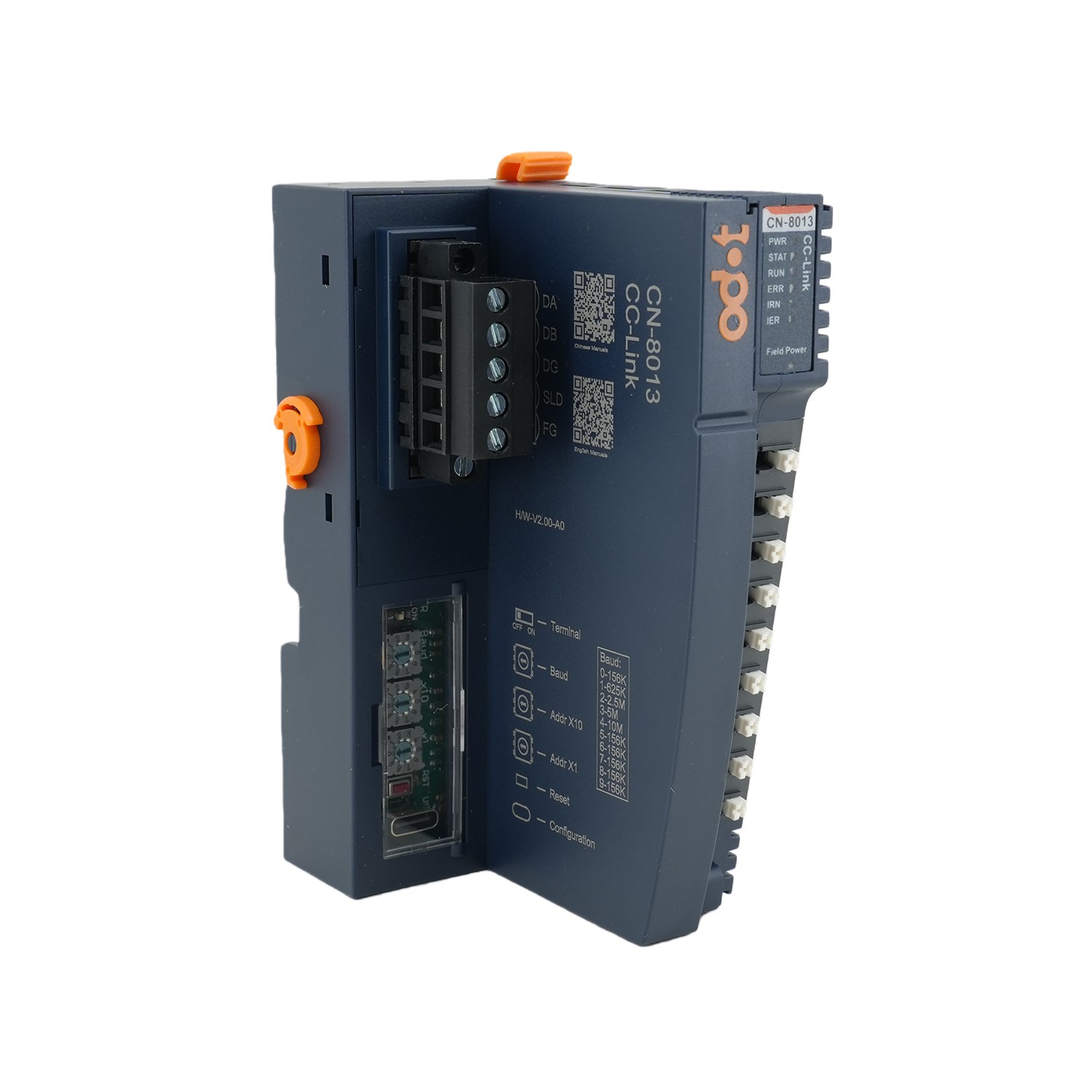

Model No: CN-8013
| Unduh | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Hardware Parameters | |
| System Power | Nominal:24Vdc, Range: 19.2-28.8VdcReverse Protection: YES |
| Power Consumption | 110mA@24Vdc |
| Internal Bus Supply Current | Max.: 2.5A@5VDC |
| Isolation | System Power to Field Power Isolation |
| Power Supply | Nominal:24VDC, Range: 19.2～28.8VDC |
| Field Power Current | Max. DC 8A |
| IO Modules Supported | 32 pcs |
| Wiring | Max.1.0mm² (AWG 17) |
| Mounting Type | 35mm DIN-Rail |
| Size | 115*51.5*75mm |
| Weight | 130g |
| Environment Specification | |
| Operation Temperature | -35℃~70℃ |
| Operation Humidity | 5~ 95%RH (No Condensation) |
| Ingress Protection Rating | IP20 |
| Protocol | CC-Link Ver.2 |
| Station Type | Remote device station |
| Number of Logical Stations Occupied | 1, 2, 3, 4 |
| Extended Loop Setup |
1 time, 2 times, 4 times, 8 times |
| I/O Data Capacity | RX/RY capacity（bit）max. 896RWr/RWw capacity（word）max. 128 |
| Baud Rate | 156K/625K/2.5M/5M/10Mbps |
| Node Station (Station No.) | 1~64(DIP switch configuration)，when DIP switch value is not 1~64, and the mandatory station number is 1. |
| Interface | 5 Pin screw terminal |
| Max. bus length | 1200m（156kbps） |
| Terminal resistance | 120ohm |
