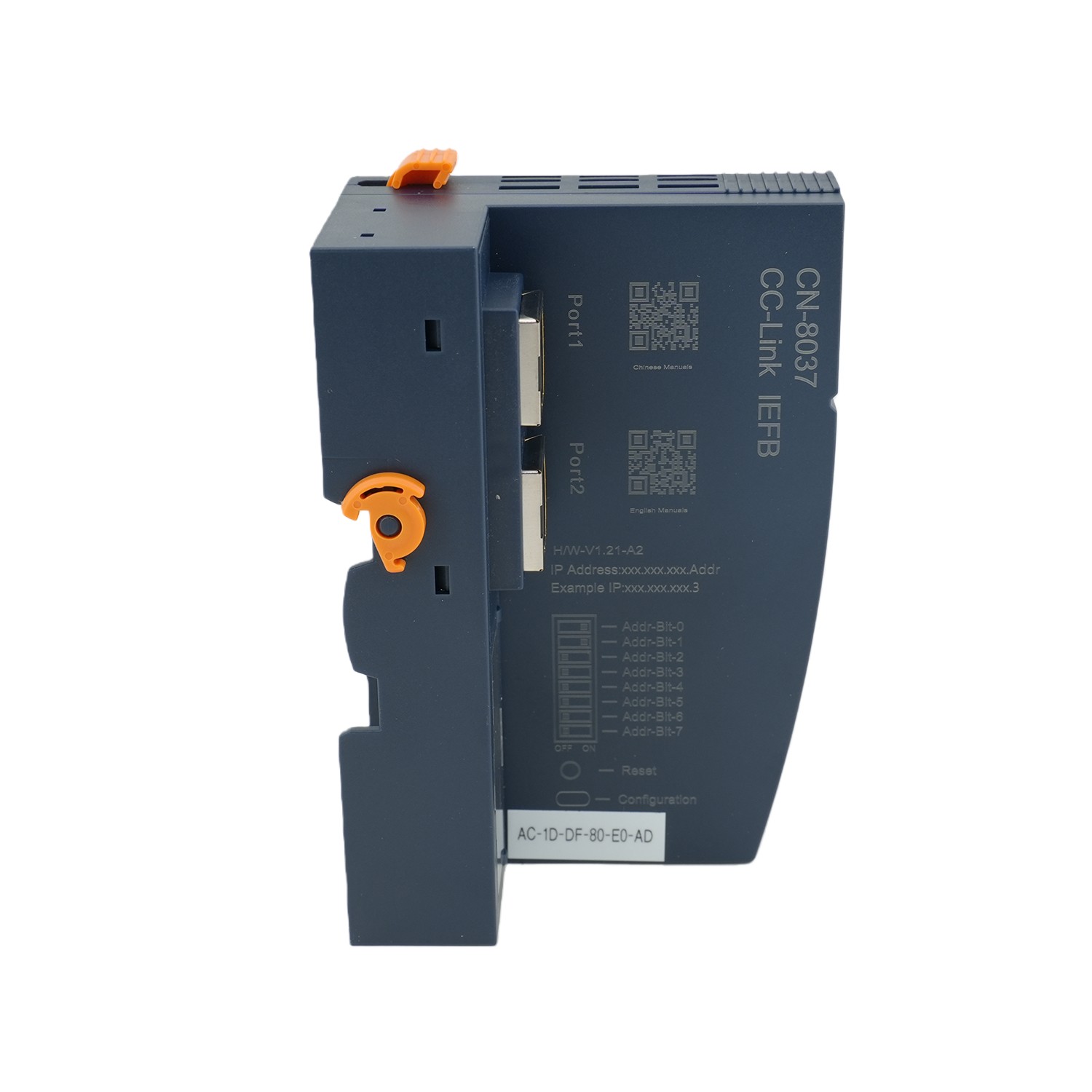

CN-8037 CC-Link IEFB IO Modul Adaptor Jaringan RJ45

Adaptor Jaringan Dasar Jaringan Lapangan CC-Link IE mendukung komunikasi Dasar Jaringan Lapangan CC-Link IE standar dan stasiun peralatan jarak jauh yang dapat menampung paling banyak 16 stasiun. Jarak transmisi maksimumnya bisa 100m. Kapasitas RX/RY maksimum adalah 1024 bit, dan kapasitas RWr/RWw hingga 512 karakter. Ethernet mendukung fungsi kaskade sakelar port ganda, dengan kecepatan komunikasi 100Mbps. Jumlah stasiun dapat dihitung secara otomatis sesuai dengan jumlah modul IO dalam konfigurasi aktual, dan status komunikasi modul IO dapat dipantau secara real time.

Detail produk:

Hardware Parameters
System Power	Nominal:24VDC, Range: 19.2～28.8VDC Current: Max.2A@24VDC Protection: Reverse Protection, Overcurrent Protection
Module Power Consumption	60mA@24VDC
Internal Bus Supply Current	Max.: 2.5A@5VDC
Isolation	System power to field power is isolated The field power supply is isolated from the system power supply at AC 500V The field power supply is isolated from PE at AC 500V The system power supply is isolated from PE at AC 500V
Power Supply	Power supply: 19.2～28.8V (24VDC nominal) Protection: Reverse Protection
Field Power Current	Max. DC 8A
I/O Modules SupWiringported	32 pcs
Wiring	Max.: AWG 18 Min.: AWG 24
Installation	35mm DIN-Rail
Size	11551.575mm
Weight	130g
Vibration Resistance	Comply with IEC 61131-2 and IEC 60068-2-6
Impact Resistance	Comply with IEC 61131-2 and IEC 60068-2-27
EMC Performance	Comply with IEC 61131-2 and IEC 61000-4
Environmental Parameters
Operating Temperature of Vertical Installation	-35℃~70℃
Operating Temperature of Horizontal Installation	-35℃~60℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	IP20
CC-Link IE FIELD BASIC Parameters
Protocol	CC-Link IE FIELD BASIC
Station Type	Remote equipment station
Number of Logical Stations Occupied	1~16(1 station has 64 bits RY data, 32 words RWw data, 64 bits RX data, and 32 words RWr data)
I/O Data Capacity	Maximum number of cyclic RY data: 128 bytes (1024 bits) Maximum number of cyclic RX data: 128 bytes (1024 bits) Maximum number of cyclic RWw data: 512 words (16 bits) Maximum number of cyclic RWr data: 512 words (16 bits)
Network Interfaces	2*RJ45
Connection Rate	100Mbit/s
Transmission Distance	100m (distance from station)
IP Address Settings	DIP switch or configured by IO Config software

Tanya Jawab

T: Berapa banyak stasiun logis yang didukung CN-8037?

J:Mendukung 1-16 stasiun logis, dengan data I/O dialokasikan per stasiun.

Q：Berapa kecepatan transmisi dan jarak CN-8037?

J: Kecepatan transmisi hingga 100Mbps, jarak stasiun-ke-stasiun hingga 100m.

T: Berapa banyak modul ekspansi IO yang didukung CN-8037?

J:Hingga 32 modul IO jarak jauh seri C.

Sertifikasi & Jaminan Kualitas:

Produk ODOT mematuhi standar industri internasional, termasuk CE dan RoHS, dan menjalani kontrol kualitas yang ketat untuk memastikan pengoperasian jangka panjang yang andal di lingkungan industri.
