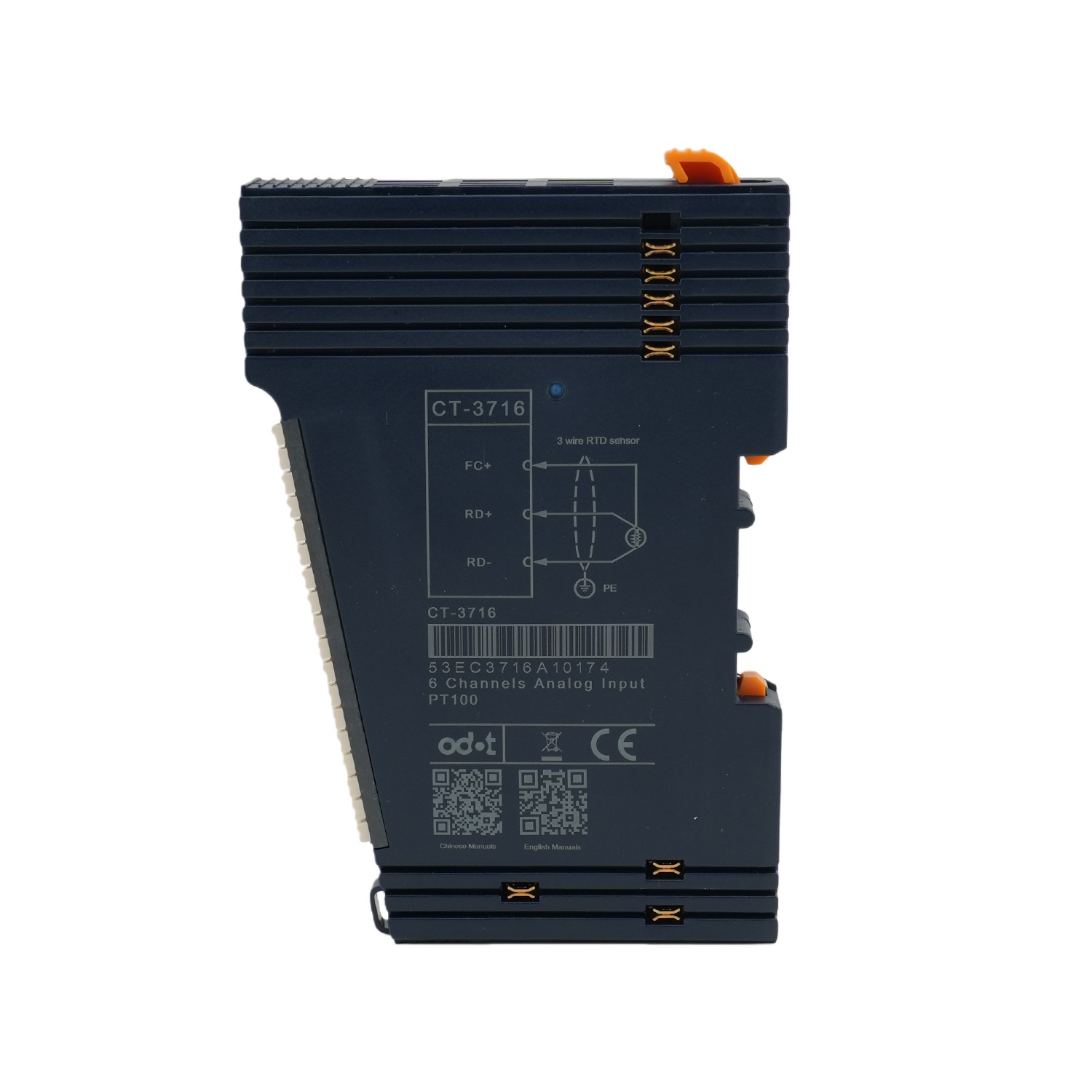

Model No: CT-3716
The file is encrypted. Please fill in the following information to continue accessing it
| General Parameters | |
|
Power Consumption
|
Max.61mA @ 5.0VDC |
| Isolation | I/O to Internal Bus: Magnetically Isolated (2.5KVrms) |
| Field Power | Unused |
| Wiring | Max.: AWG 18 |
| Installation Mode | 35mm DIN-Rail |
| Size | 115*14*75mm |
| Weight | 65g |
| Environment Specification | |
| Operating Temperature of Vertical Installation | -35℃~60℃ |
| Operating Temperature of Horizontal Installation | -35℃~70℃ |
| Relative Humidity | < 95%RH(No Condensation) |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | < 95%RH(No Condensation) |
| Manufacturing Test Temperature | -40℃~75℃ |
| Ingress Protection Rating | IP20 |
| Input Parameters | |
| Channel Number | 6 channels |
| LED Indicator | 6 green LED |
| Resolution | 15 bits |
| Sensor Type | PT100 |
| Measuring Range | -200~850℃ |
| Measurement Accuracy | 0.5℃ |
| Conversion Rate | 400ms/6 channels |
| Diagnostic Function |
32766: The sensor is not connected or the wire is disconnected
-32766: Short-circuit condition
32765: Chip failure
32767: Temperature overflow
-32768: Temperature underflow
|
