Model No: CT-4238

& pengiriman paket

The file is encrypted. Please fill in the following information to continue accessing it

Seri SPS-C IO_20260119_11180739



Deskripsi Produk

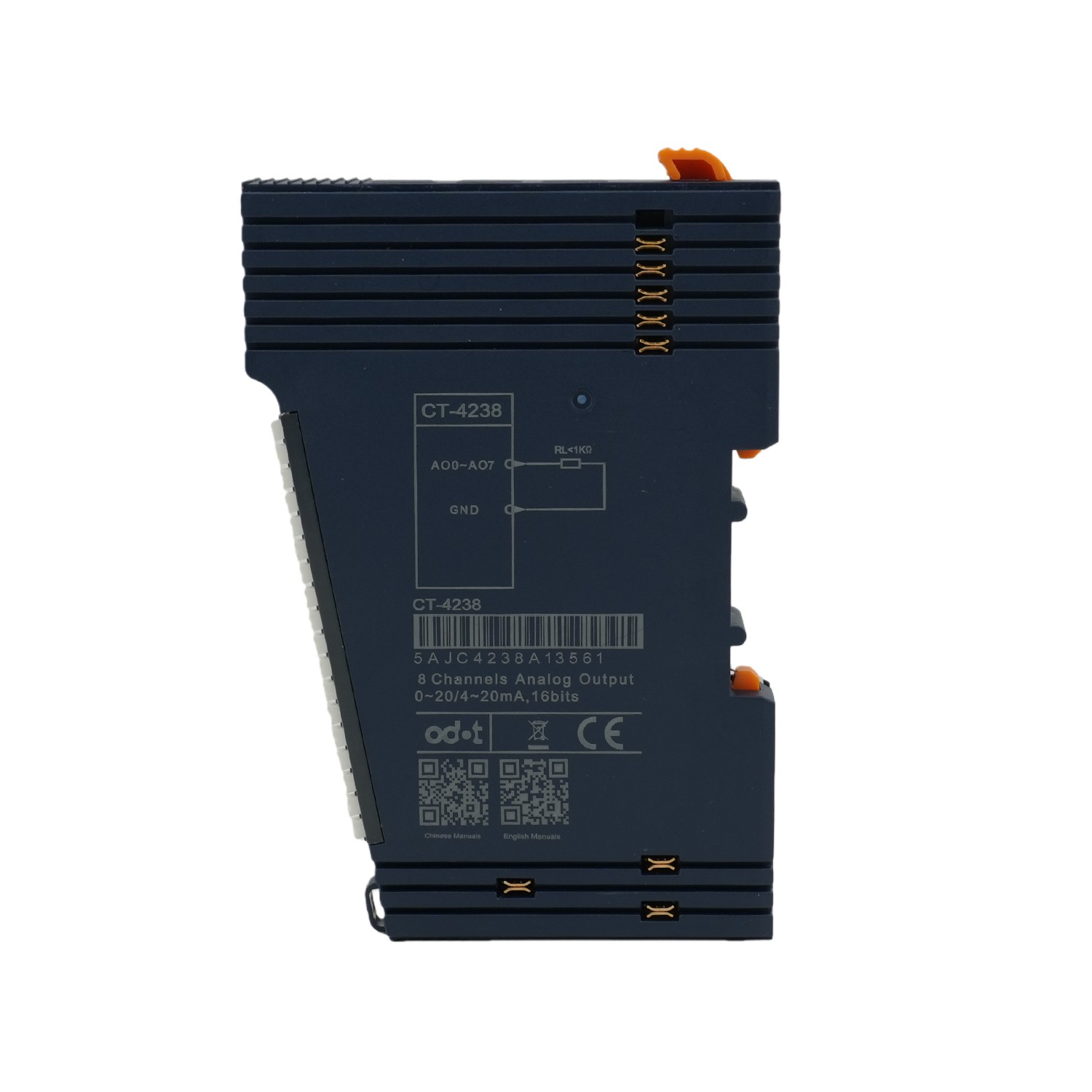

CT-4238 keluaran analog 8 saluran /0&4-20mA/16 bit

Fitur modul

1. Rentang keluaran modul dapat diatur ke 0-20 mA atau 4-20 mA

2. Modul ini mengadopsi mode keluaran terminal tunggal

3. Akurasi keluaran modul 0,1% (skala penuh @25℃), 0,3% (skala penuh @-35℃~70℃)

4. Modul memiliki fungsi diagnosis keadaan keluaran saat ini

Parameter teknis

General parameter
Power	Max.68mA @ 5.0VDC/25℃
Isolation	The isolation voltage between I/O module and system power is AC500V The isolation voltage between I/O module and PE is AC500V The isolation voltage between field power and PE is AC500V
Field Power	Supply: 19.2~28.8VDC (nominal:24VDC)
Wiring	Max.: AWG 18 Min.: AWG 24
Mounting Type	35mm DIN-Rail
Size	1151475mm
Weight	65g
Environment parameter
Operating Temperature of Vertical Installation	-35℃~60℃
Operating Temperature of Horizontal Installation	-35℃~70℃
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40℃~85℃
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40℃~75℃
Ingress Protection Rating	IP20
Vibration Resistance	Comply with IEC 61131-2 and IEC 60068-2-6
Impact Resistance	Comply with IEC 61131-2 and IEC 60068-2-27
EMC Performance	Comply with IEC 61131-2 and IEC 61000-4
Output parameter
Channel Number	8-channel
Indicator	8 panel indicators, 1 power indicator, 1 two-color indicator
Resolution Ratio	16 Bit
Output Accuracy	0.1%@25℃，0.3%@-35℃~70℃
Diagnostic Function	Disconnected, open/overload
Common Terminal	0V common ground, channels are not isolated
Conversation	2ms/All channels
Load	Max.1KΩ

Skenario aplikasi:

Tanya Jawab

T:Jumlah saluran?

J: 8 saluran.

T: Akurasi keluaran?

J：0,1%@25℃，0,3%@-35℃~70℃

T: Aplikasi umum?

A: Output analog untuk sistem kontrol proses. ODOT Solutions
