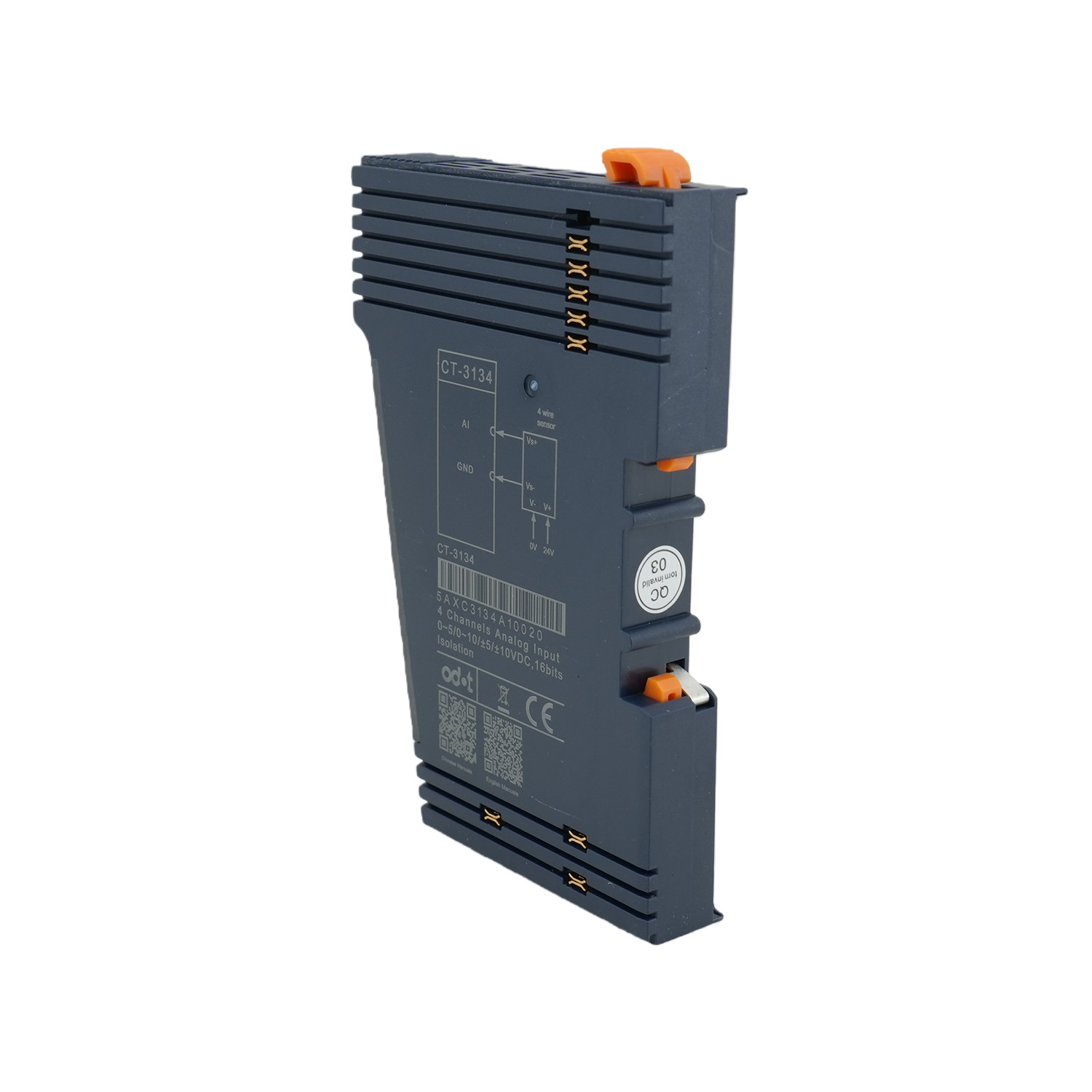

Model No: CT-3134
The file is encrypted. Please fill in the following information to continue accessing it
| Output Parameters | |
| Power | Max.260mA @ 5.0Vdc |
| Isolation | I/O to internal bus isolation voltage AC 500V |
| Field power | Not used |
| Mounting Type | 35 mm Din-Rail |
| Wiring | Max.1.0mm² (AWG 17) |
| Size | 115*14*75mm |
| Weight | 65g |
| Environment Specification | |
| Operational Temperature | -35~70℃ |
| Operational Humidity | 5%~95% RH(No Condensation) |
| Protection Class | IP20 |
| Input Parameter | |
| Channel Number | 4 channel voltage input |
| LED Indicator | 4 channel input indicators |
| Input Voltage Range | 0~5VDC、0~10VDC、±5VDC、 ±10VDC |
| Resolution | 16 Bits |
| Accuracy |
±0.3% @ 25℃;±0.5 @ -40~85℃
|
| Sampling Rate | 12ms/4 channel |
| Output Impedance | 100KΩ（±5%) |
| LED Indicator | 4 channel input indicators |
| Channel disable | supported |
