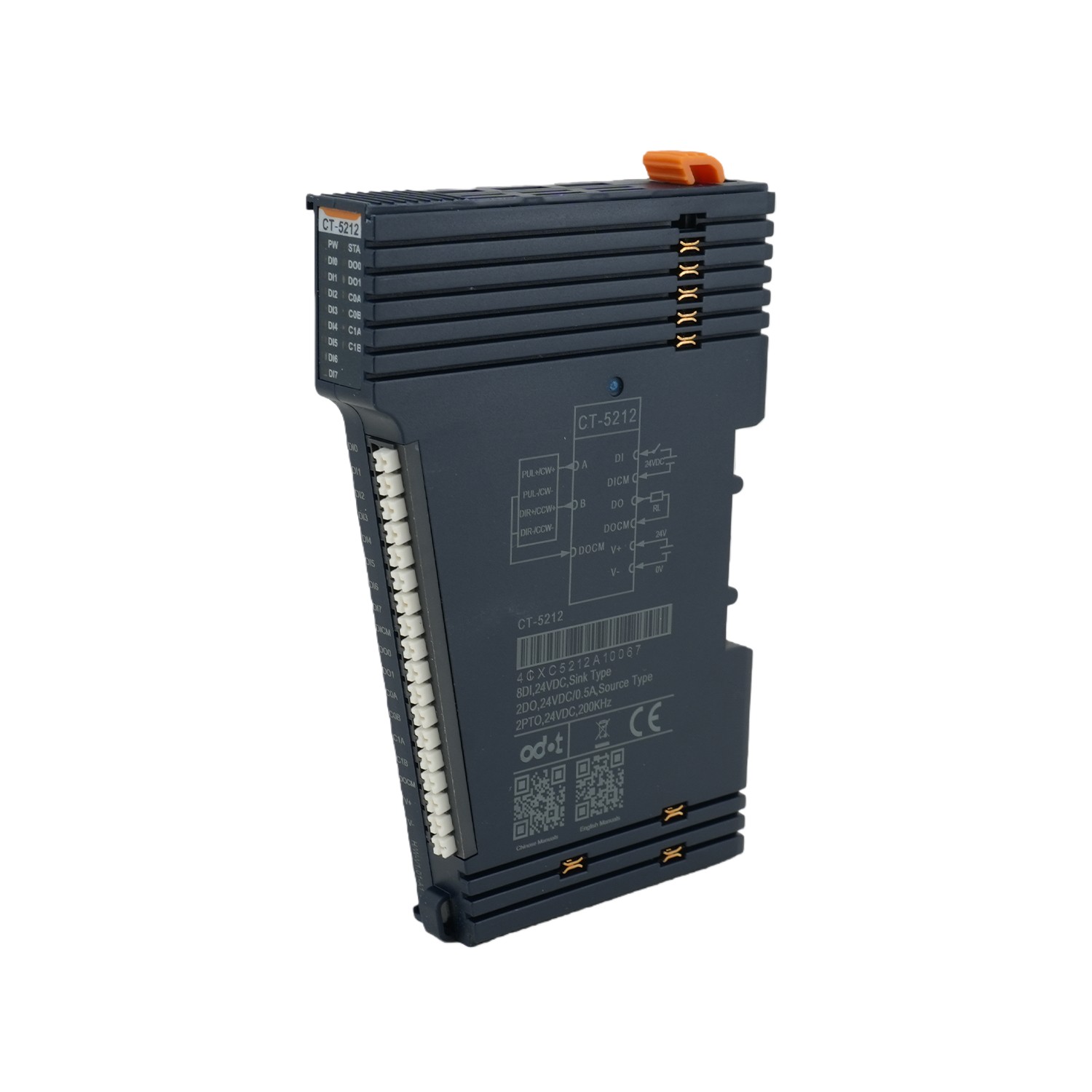

Model No: CT-5212
The file is encrypted. Please fill in the following information to continue accessing it
| General parameter | |
| Field Power | Supply：19.2～28.8VDC（Nominal: 24VDC） Protection: Anti-reverse connection protection |
| Power | Max.132mA @ 5.0VDC |
| Isolation |
The isolation voltage between field power and system power is AC500V
The isolation voltage between I/O channel and system power is AC500V
The isolation voltage between I/O channel and PE is AC500V
|
| Wiring | Max.: AWG 18 Min.: AWG 24 |
| Mounting Type | 35mm DIN-Rail |
| Size | 115*14*75mm |
| Weight | 65g |
| Environment parameter Operating Temperature of Vertical Installation | -35℃~60℃ |
| Operating Temperature of Horizontal Installation | -35℃~70℃ |
| Relative Humidity | 5~ 95%RH (No Condensation) |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | 5~ 95%RH (No Condensation) |
| Manufacturing Test Temperature | -40℃~75℃ |
| Ingress Protection Rating | IP20 |
| Vibration Resistance | Comply with IEC 61131-2 and EC 60068-2-6 |
| Impact resistance | Comply with IEC 61131-2 and IEC 60068-2-27 |
| EMC Performance | Comply with IEC 61131-2 and IEC 61000-4 |
| DI Parameter | |
| Channel Number | 8-channel input |
| Indicator | 8-channel input indicator |
| Input Type | IEC61131-2 type3 |
| Turn-on Voltage | Sink：11~30VDC（compared with COM terminal） |
| Turn-off Voltage | Sink：-3~5VDC（compared with COM terminal） |
| Turn-on Current | 2.5mA@DC11V, Comply with IEC61131, type 3 |
| Input Impedance | >1KΩ@DC24V |
| Output Delay | OFF to ON:<1ms ON to OFF<1ms |
| Filter Time | Default: 8us |
| Sample Frequency | 500 Hz |
| DO Parameter | |
| Channel Number | 2-channel output |
| Indicator | 2-channel output indicator |
| Rated Current | Max.0.5A |
| Leakage Current | <350uA |
| On-resistance | Typical value：540mΩ |
| Output Delay | OFF to ON:<5us ON to OFF<10us |
| Output Type | Source output/high level output |
| Load Type | General use and Resistive |
| Protection Function |
Short-circuit protection
Overcurrent protection: 1.6A
Over-temperature protection: thermal protection temperature of thechannel：167℃
Thermal protection temperature of the chip: 150℃
|
|
Pulse output parameter
|
|
| Channel Number |
2-channel output
|
| Rated Current |
Max.0.5A
|
| Leakage Current |
<350uA
|
| On-resistance |
Typical：540mΩ
|
| Output Delay |
OFF to ON:<1us ON to OFF<1us
|
| Pulse Duration Accuracy |
±0.5us
|
| Pulse duration resolution |
4ns
|
| Minimum Pulse Duration |
2.5us
|
| Maximum Switching Frequency |
200KHz
|
| Pulse Rise Rime |
<300ns
|
| Pulse Decay Time |
<100ns
|
| Protection Function |
Short-circuit protection
Overcurrent protection：1.6A
Over-temperature protection: thermal protection temperature of the channel: 167℃
Chip thermal protection temperature: 150℃
|
