Model No: CT-2738
The file is encrypted. Please fill in the following information to continue accessing it

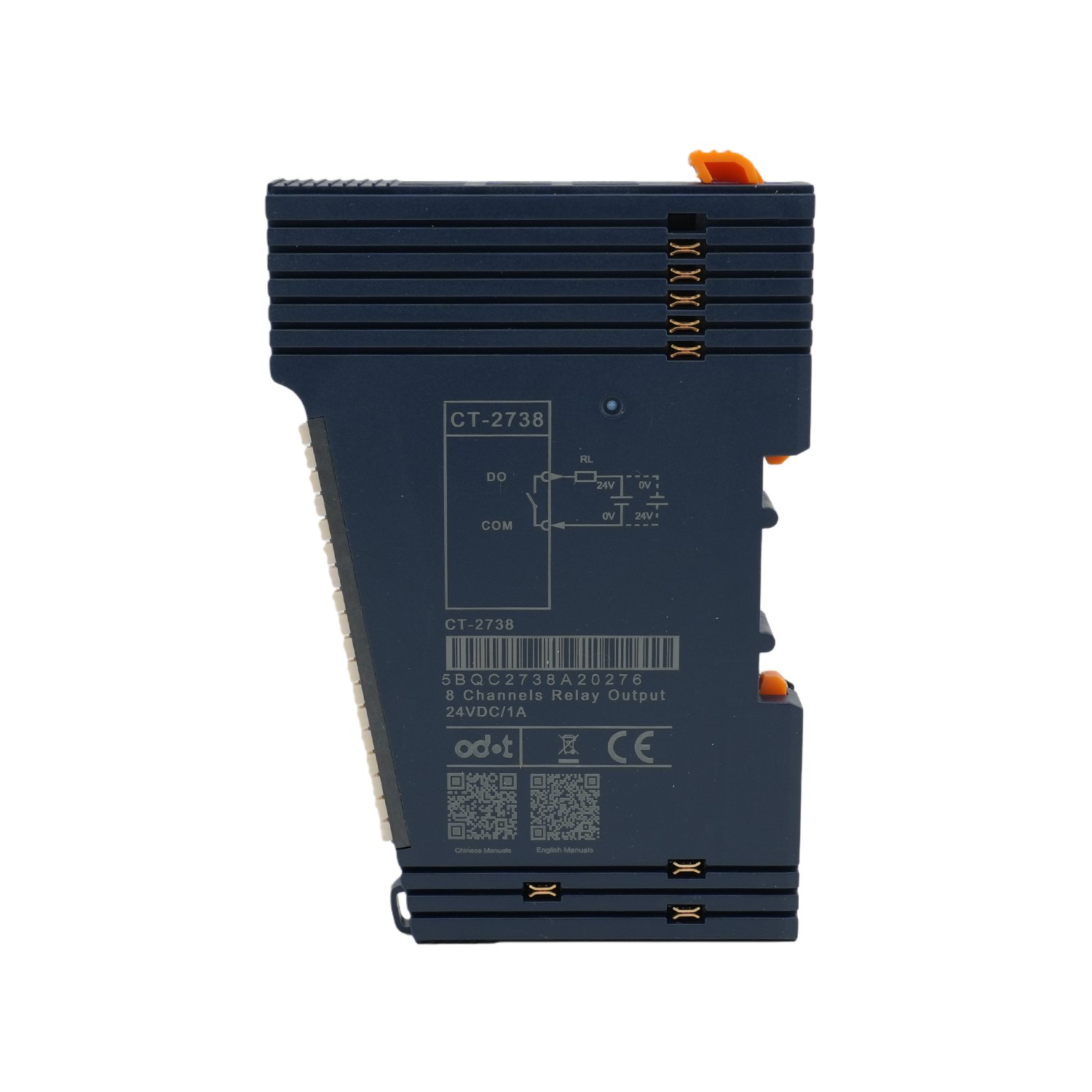

Modul Output Relai CT-2738 Isolasi Pengelompokan Saluran 8ch
Fitur modul
1. Relai 8 saluran biasanya pada keluaran 2. 8 indikator saluran LED
3. Resistensi rendah (≤100mΩ) 4. Dengan isolasi antar saluran
5. Dioda dua arah TVS bawaan, sirkuit RC bawaan 6. Beban resistif dan induktif dapat dihubungkan
Parameter Teknis
| Output Parameters | |
| Power | Max.250mA @ 5.0Vdc |
| Isolation |
I/O channel to internal Bus isolation voltage AC 500V
Isolation voltage between channels AC 500V
|
| Field Power | Not used |
| Wiring | Max.1.0mm² (AWG 17) |
| Mounting Type | 35mmDIN-Rail |
| Size | 115*14*75mm |
| Weight | 65g |
| Environment Specification | |
| Operational Temperature | -35~70℃ |
| Operational Humidity | 5%~95% RH(No Condensation) |
| Protection Class | IP20 |
| Input Parameter | |
| M/S/F:Channel Number | 8 channel Relay normally on output |
| LED Indicator | 8 channel output LED Indicator |
| Max. Switching Current | Resistive load : 1A;Inductive load : 1A |
| Max. Switching Voltage | 30VDC |
| Max. Switching Power | 30W |
| Switching Frequency | Resistive load：Max 2Hz;Inductive load：Max 0.5Hz |
| Contact Resistance | ≤100mΩ |
| Output Delay | ON to OFF:Max.10ms;OFF to ON:Max.10ms |
| Mechanical Endurance | 2x107 |
| Electricity Endurance | 1x105 |
| Vibration | 10Hz~55Hz 1.5mm Double vibration amplitude |
| Impact | Stability：98m/s2;Strength：980m/s2 |
